Take Control of Your Irrigation System: How Yaskawa VFDs and FarmHQ Work Together to Simplify Irrigation

Irrigation can often feel like an endless hassle—constantly tweaking pumps, adjusting water flow, and dealing with unpredictable systems. But with the right technology, you can transform irritation into efficiency. By combining the power of Yaskawa Variable Frequency Drives (VFDs) with FarmHQ’s smart control capabilities, you’ll unlock a seamless, automated irrigation process that saves time, water, and energy.

Why Use a Yaskawa VFD to Control Your Irrigation Equipment?

Yaskawa VFDs are designed to provide unparalleled control over irrigation pumps, making them an essential tool for modern agriculture. Here’s how they can benefit your operation:



    1. Precise Water Flow Management
      Yaskawa VFDs allow for precise speed adjustments to match your irrigation needs. This ensures the right amount of water reaches your crops without overwatering or wasting resources.
    2. Energy Efficiency
      Unlike traditional pumps that run at full capacity regardless of demand, VFDs adjust the motor speed to only use the energy needed. This reduces electricity costs and minimizes your carbon footprint.
    3. Extended Equipment Lifespan
      By soft-starting and gradually ramping up motor speed, VFDs reduce mechanical wear and tear on your pumps. This leads to fewer breakdowns and lower maintenance costs.
    4. Flexibility Across Applications
      Yaskawa VFDs are versatile enough to handle a wide range of irrigation setups, from single-zone systems to multi-pump operations.
    5. Reliability You Can Trust
      Built for demanding environments, Yaskawa VFDs deliver consistent performance under various conditions, ensuring your irrigation system keeps running smoothly.

How FarmHQ Makes Irrigation Even Better

Pairing your Yaskawa VFD with FarmHQ takes your irrigation system to the next level. FarmHQ is a smart irrigation management tool that automates and simplifies pump and system control. Here’s why it’s a game-changer:

    1. Automated Pump Control
      Forget about manual operation. FarmHQ automatically starts and stops your pump based on irrigation schedules or water flow demands.
    2. Dynamic Speed Adjustment
      FarmHQ uses its 4-20mA output to fine-tune pump speeds in real-time, ensuring that water flow matches your crop needs while saving energy.
    3. Seamless Device Connectivity
      FarmHQ devices can “connect” to one another, creating a fully synchronized irrigation system. Your pumps, valves, and pressure regulators will work together harmoniously.
    4. Remote Monitoring and Alerts
      Monitor your irrigation system from anywhere using the FarmHQ app. Receive real-time updates and alerts, so you’re always in control.
    5. Enhanced Efficiency
      FarmHQ tracks energy and water usage, providing insights to help you optimize your system and cut costs.

With FarmHQ, irrigation is no longer an irritation—it’s a streamlined, automated process that allows you to focus on what matters most.

The Perfect Pair for Modern Irrigation

When you combine the precision of Yaskawa VFDs with the automation and intelligence of FarmHQ, you create an irrigation system that works smarter, not harder.

This integration eliminates the guesswork from irrigation by automatically managing pump operation and water flow. The FarmHQ system ensures your Yaskawa VFD operates at peak efficiency, seamlessly adjusting pump speeds and connecting with other devices to optimize performance across your entire farm.

The result? Less time spent manually controlling your irrigation system, more consistent water distribution, and significant savings on energy and maintenance. With FarmHQ and Yaskawa, you gain control, convenience, and peace of mind—an unbeatable combination for modern farming.

How to Integrate FarmHQ with Your Yaskawa VFD

Ready to combine the precision of Yaskawa VFDs with the intelligence of FarmHQ? Follow these steps to set up your system:

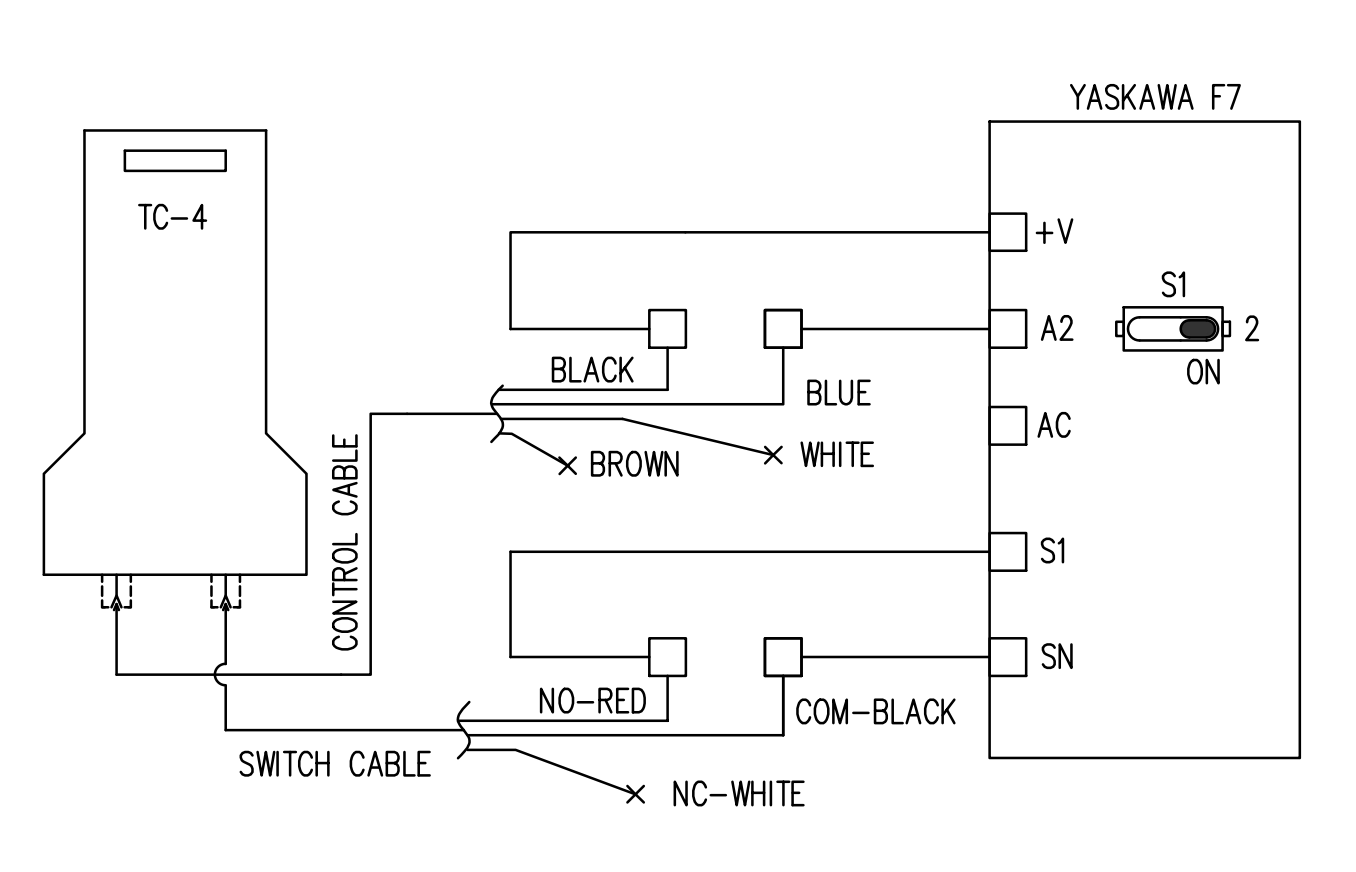

Hardware Setup

  • Use the FarmHQ relay to complete the circuit between S1 (Forward Run) and SN (Digital Input Common) on the Yaskawa VFD.
  • Connect the FarmHQ CAN bus black wire to terminal +V and the blue wire to terminal A2.
  • Set the DIP switch S2-2 on the Yaskawa VFD to the ON position for 4-20mA control.

Programming the Yaskawa VFD

Set Frequency Reference Selection

  • B1-01 = 1: Select terminal input for frequency reference.

Configure Frequency Limits

  • D2-01 = 100: Set the upper limit to 100% of max operating speed.
  • D2-02 = 50: Set the lower limit to 50% of max operating speed.
  • E1-04 = 60Hz: Define the maximum operating speed.

Adjust Terminal Settings

  • H3-01 = 0: Set A1 signal level.
  • H3-02 = 100: Set A1 gain.
  • H3-05 = 2: Set A1 function for frequency reference.
  • H3-08 = 2: Set A2 signal level.

Acceleration and Deceleration

  • C1-01 = 30 seconds: Smooth motor ramp-up time.

Disable PID Feedback

  • B5-01 = 0: Disables PID control for direct FarmHQ input.

Final Checks

Review all modified parameters to ensure proper system configuration. Restore any default settings if necessary for compatibility.

Conclusion

The integration of Yaskawa VFDs and FarmHQ redefines irrigation management. With precise control, automated operation, and real-time monitoring, this partnership eliminates the challenges of manual pump control and inefficient water use. The result is a system that’s smarter, more reliable, and cost-effective.

Whether you’re looking to save energy, extend the life of your equipment, or simplify your workflow, FarmHQ and Yaskawa VFDs are the perfect solution. Revolutionize your irrigation process today—visit FarmHQ to learn more and get started!
